Frameset
Frame
Oltre carbon aero shape, electronic drivetrain only, headset 1.1/4-1.1/4,BB-PressFit 86,5x41mm, integrated seat clamp, for flat mount caliper, internal cable routing for disc brakes, thru axle 12x142mm, sizes 47-50-53-55-57-59cm
Fork
Full Carbon aero, Disc brakes, integrated head 1.1/4, flat mount caliper, thru axle 12x100mm
Headset
Fsa No. 54 - MR137 - ACB 1-1/4diam.46.9x diam.37x7
Drivetrain
Shifters
Shimano Durace Di2 hydraulic disc brake for road, ST-R9270, BR-R9270, for 160mm rotor
Rear Derailleur
Shimano Durace Di2 12sp, RD-R9250 Ceramicspeed cage, OSPW Aero Alpha
Front Derailleur
Shimano Durace Di2 12sp,FD-R9250

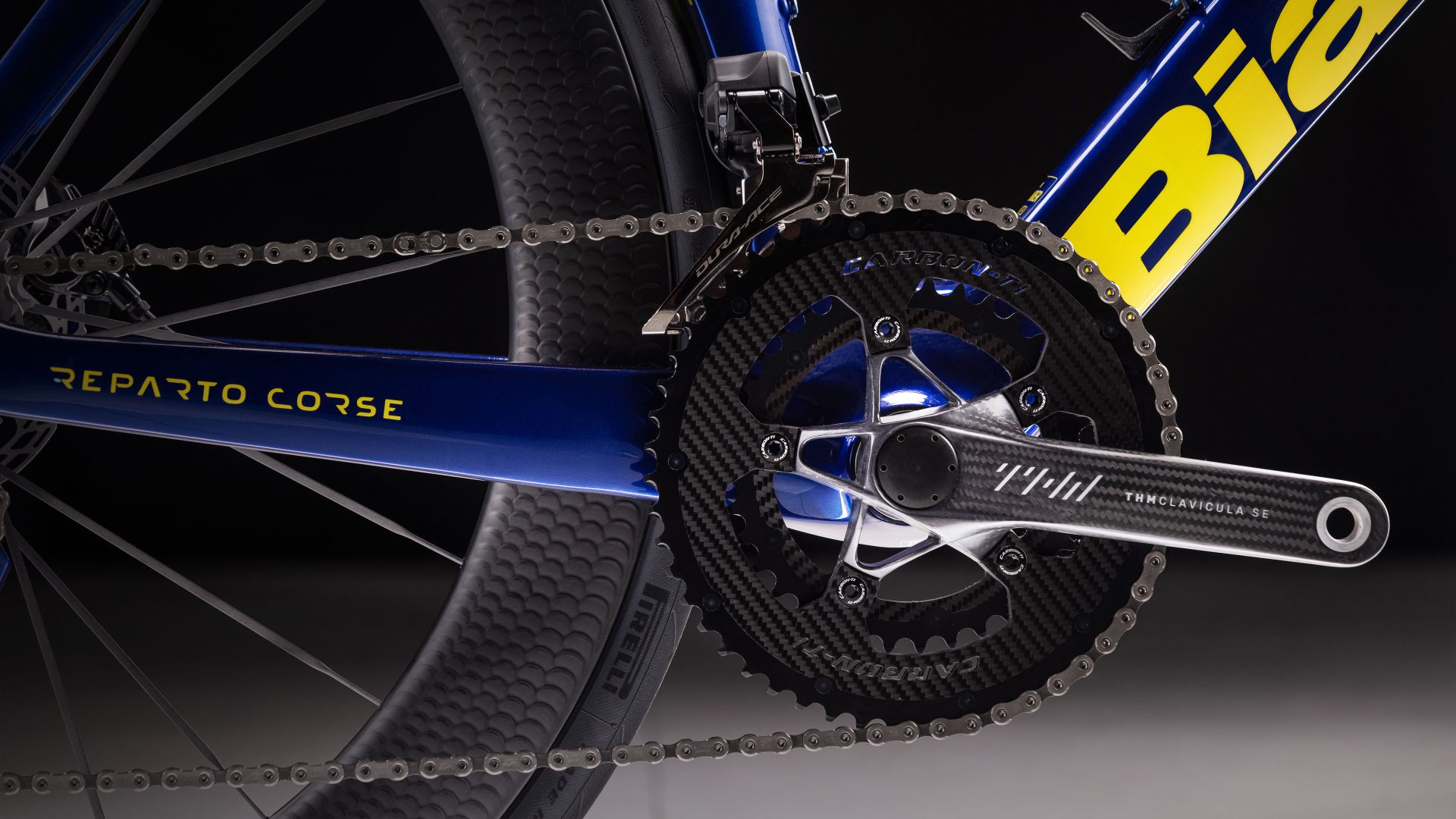

Crankset
THM-Carbones Clavicula SE Powermeter, BCD 110 mm, 5 bolts; Chainrings Carbon-Ti X-CarboRing 52x36T; Crank length: 165 mm (47/53 cm), 170 mm (55/59 cm)
Bottom Bracket
Clavicula Pressfit
Chain
Shimano Durace 12sp, CN-M9100
Cassette
Shimano Durace 12sp, CS-R9200, 11-12-13-14-15-16-17-19-21-24-27-30T
Brakes
Brakes
Shimano BR-R9270 Hydraulic disc brake, included in the shifter
Rotor
Carbon-Ti, X-Rotor Aero Center Lock, 160 mm front and rear
Wheels
Wheels
Scope Artech 6.A, 65 mm profile, 700x25C, HG body, Aeroscales rim structure, 3D printed hubs, 36T diamond Ratchet SL system, Carbonlite Aerospoke, weight per set: 1319 g
Tire
Pirelli P ZERO™ Race RS TLR , 30-622, SmartEvo compound, Speedcore TLR technology, 120 tpi

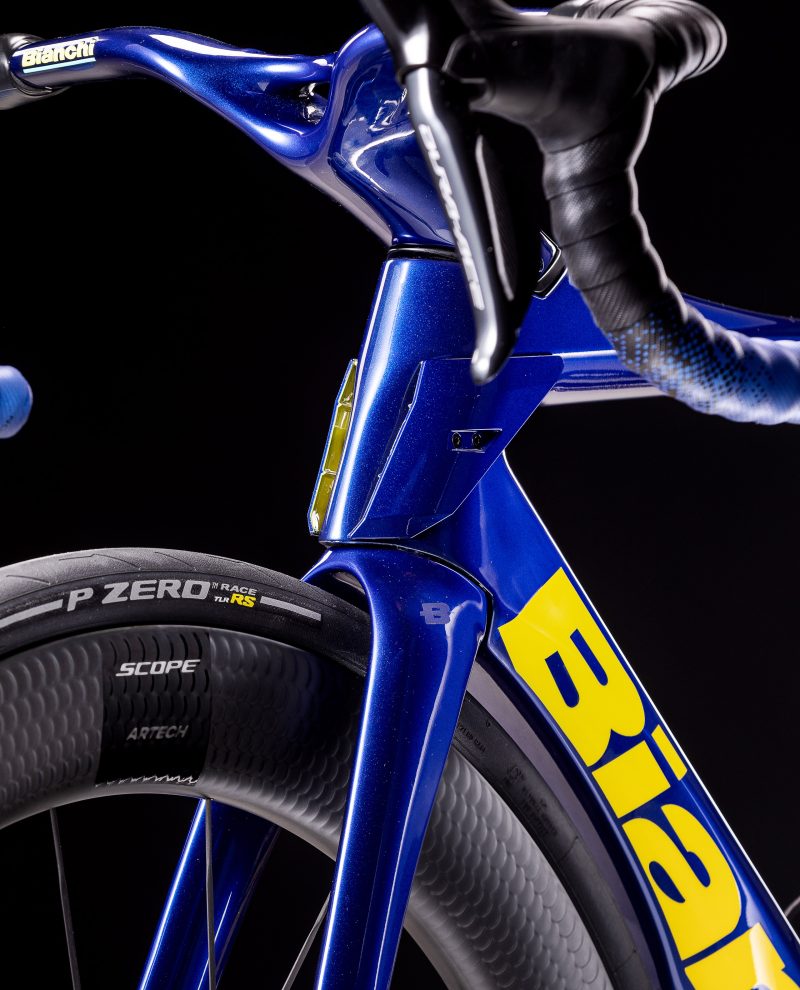

Cockpit
Stem
Integrated handlebar Integrated Aero bar, material carbon, drop 125mm, reach 80mm, Di2 compatible Ext: 90x400-47/50cm ; 100x400-53cm; 110x420-55/57cm; 120x420-59cm
Handlebar
Included in the stem
Grips / Extensions
Seitex technology premium tape, 3.0mm thickness, custom color, expanding locking bar plugs
Saddle
Seatpost
Oltre Full Carbon Aero special dimension seatpost, 20mm offset, length: 280mm-47cm, 300mm-50/55cm, 350mm-57/59cm
Saddle
Fizik Vento Argo 00 Adaptive, Full carbon shell, Adaptive padding technology, Carbon rails, length: 265 mm, width: 140 mm, weight: 153 g
